SharePoint and SSL – Configuring https for SharePoint on Windows Server 2008 IIS7

    Problem

    You would like your windows Server 2008 instance of SharePoint to respond to https.

    Solution

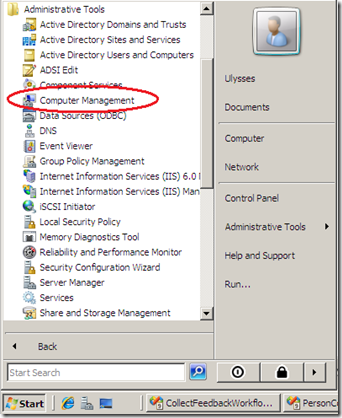

    Start computer management

    clip_image001

    Select the Internet Information Services role

    clip_image002

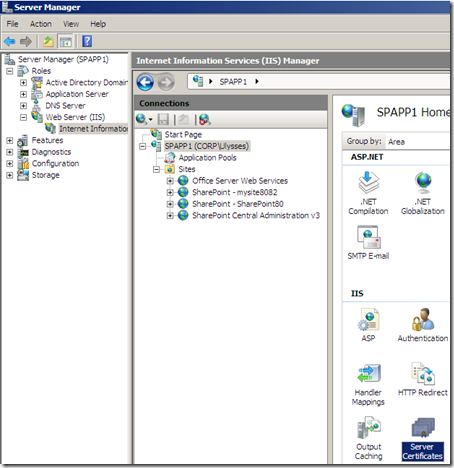

    Double click on Server Certificates

    clip_image003

    In the actions menu Create Self Signed Certificate (or if you are using these instructions for a production instance you can import your new certificate to IIS here as well.

    clip_image004

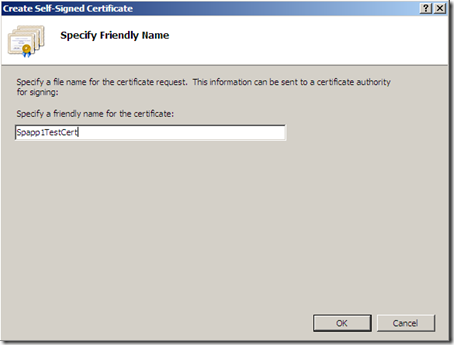

    Provide a friendly name for your cert

    clip_image005

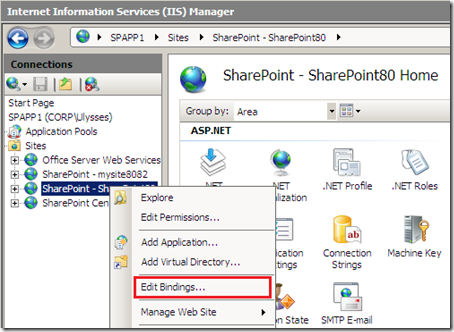

    Right mouse key on your SharePoint web application and select Edit Bindings

    clip_image006

    In the bindings window add a new binding

    clip_image007

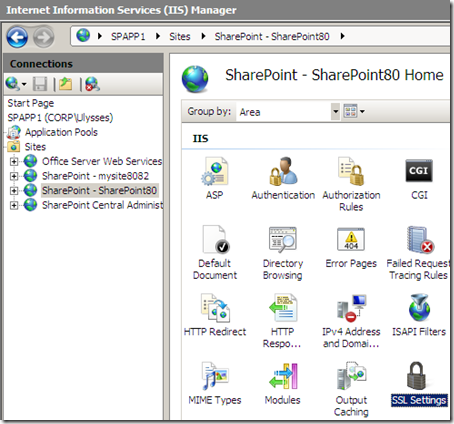

    Select SSL Settings for the SharePoint web application you’d like to communicate with via SSL / https.

    clip_image008

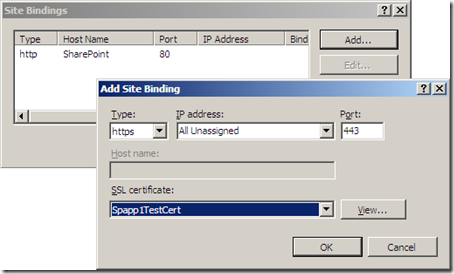

    Bind your certificate to “https” for the necessary IP addresses. Please note that port 443 is the default SSL port so don’t change that setting unless you are planning on providing the servername and port number to your end users (e.g. https://sharepoint:42843/)

    clip_image009

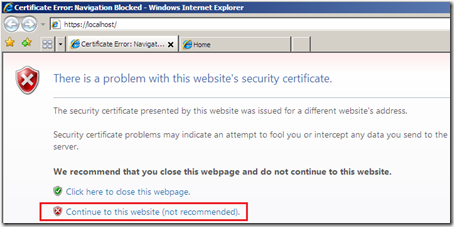

    Now launch your website with the https prefix in the url, if you followed these directions closely you will receive a certificate error since your self signed certificate was not provisioned by a valid certificate authority such as Verisign.

    clip_image010

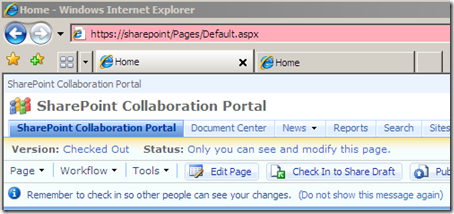

    Success!!!

    clip_image001[1]

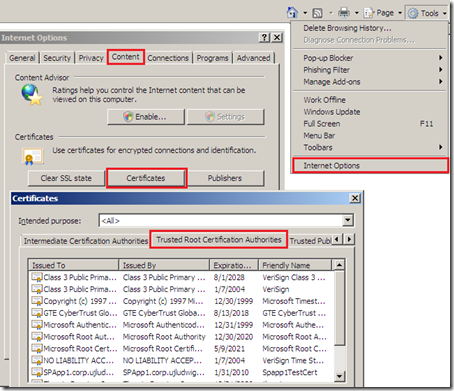

    If you need to get a real SSL certificate instead of a self signed version you can browse the trusted certificate authorities in your browser

    clip_image011
